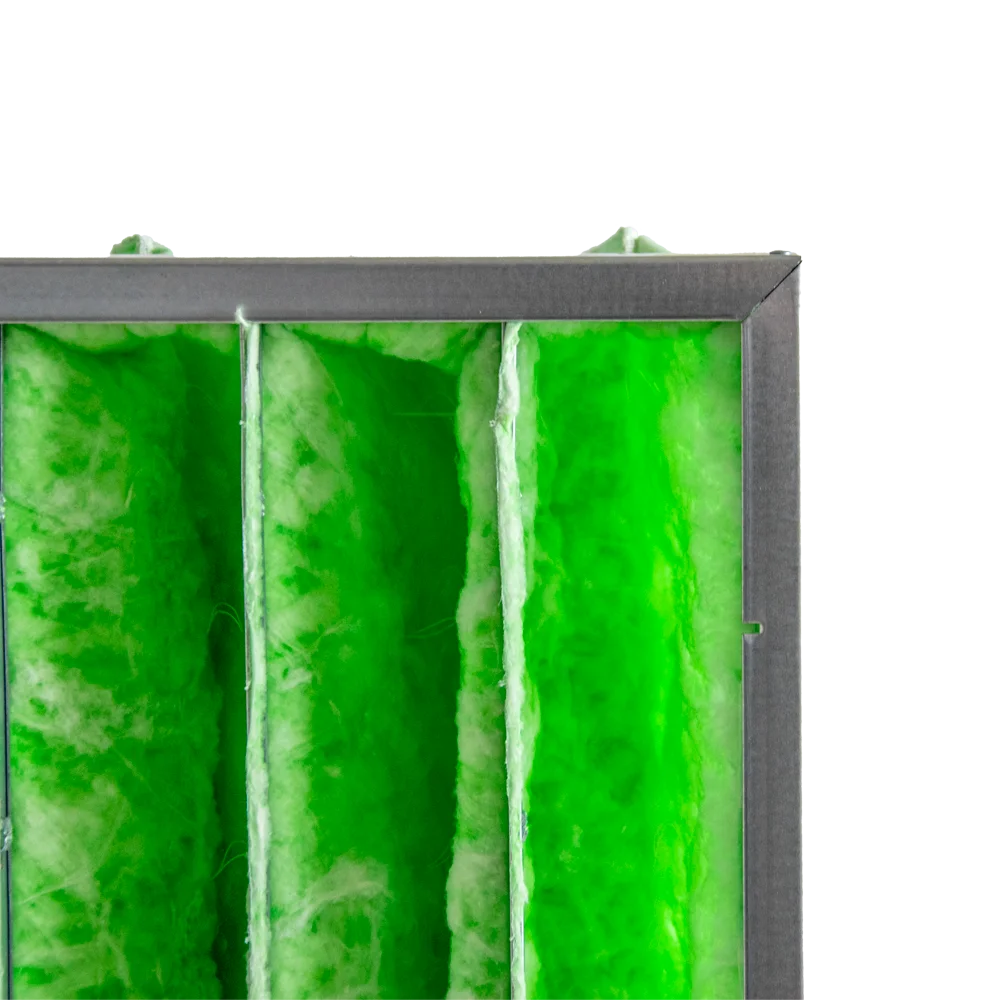

Pocket filter ePM 2,5 50 % (M6)
EN ISO 16890
(previously EN 779:2012)
Frames:
Metal
Operating temperature:
to 70°C
The final pressure loss:
250 Pa
Use
Used as a pre-filter or final filter in air handling units.
Parameters
Pocket filters made from non-woven glass fiber serve as pre-filters or final filters for capturing fine dust in ventilation systems.
These filter pockets offer high dust holding capacity with a low initial pressure drop.
The filters can be disposed of by incineration or in controlled landfill sites.
Technical data
Filtration class 779:2012: M6
EN ISO 16890: ePM2,5 50 %
Initial pressure loss: 69 Pa
Recommended final pressure loss: 250 Pa
Thermal resistance: to 70°C
Nominal air flow rate: 3400 m3/h
