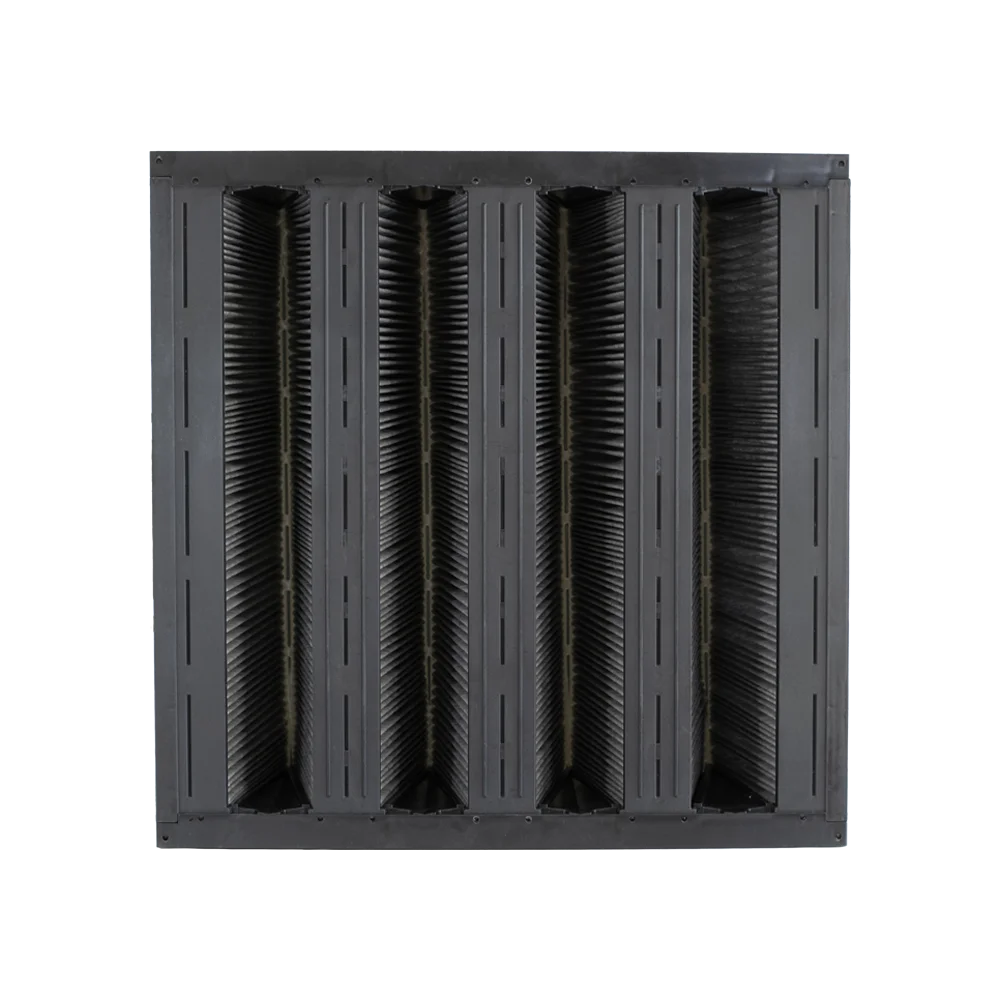

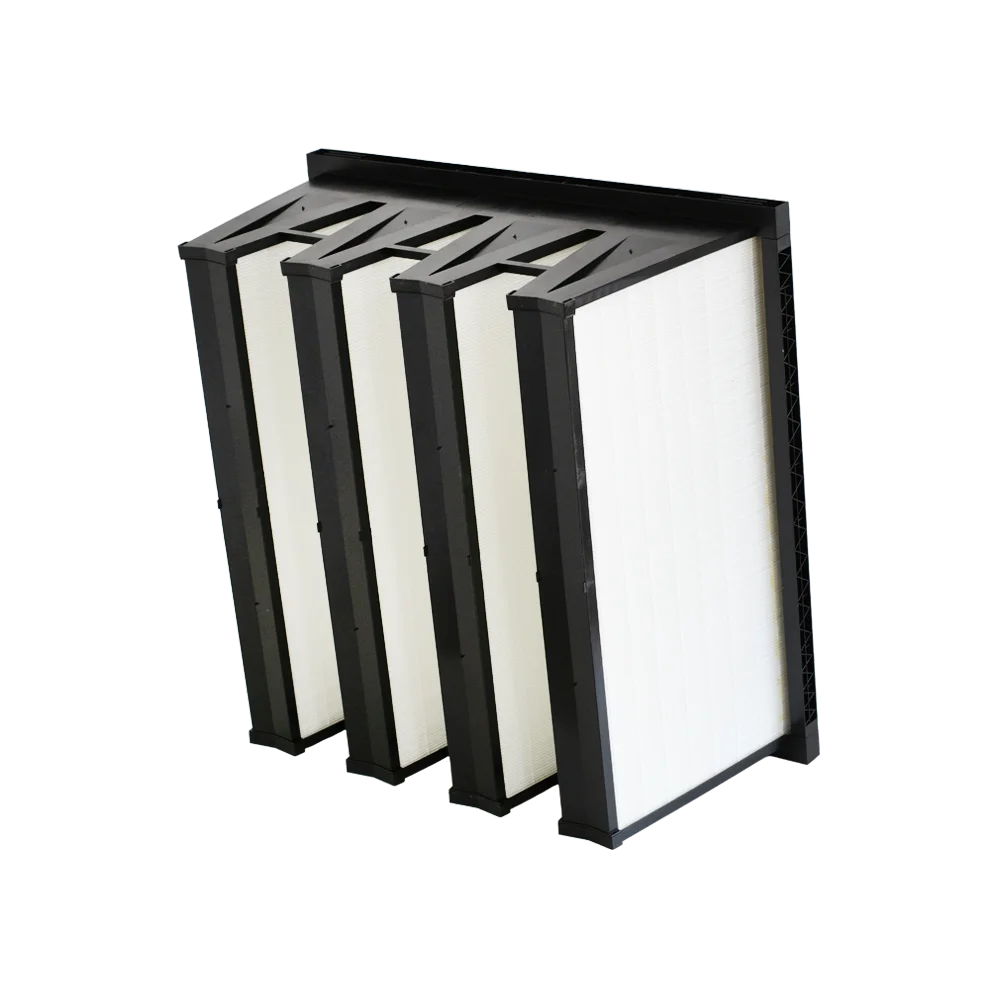

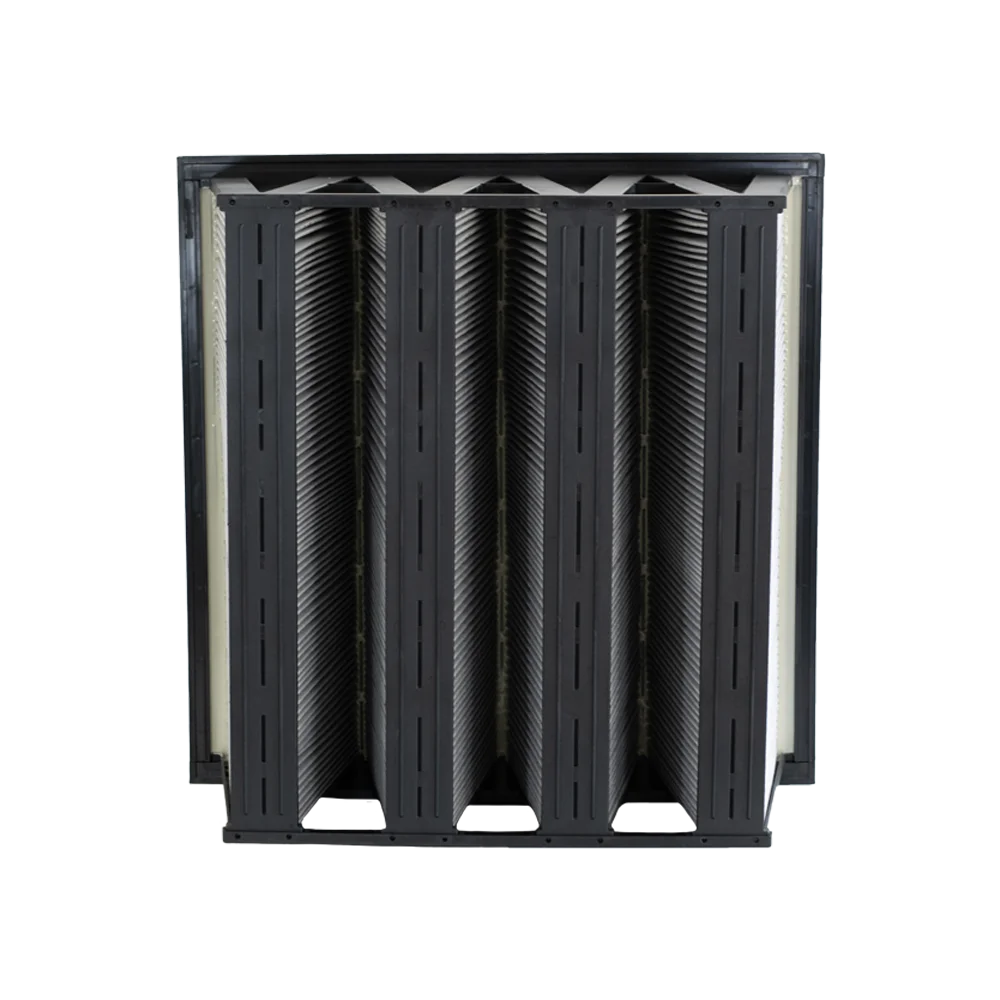

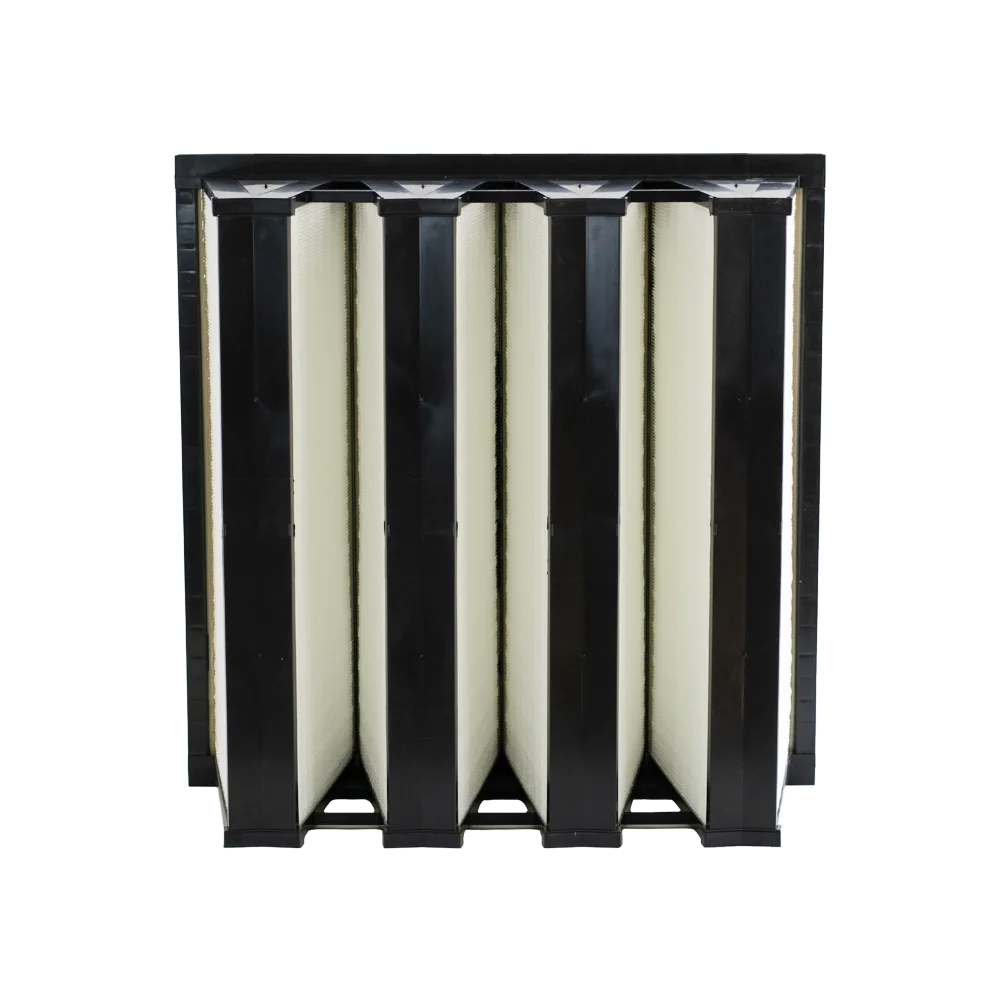

Compact filter
EN ISO 16890, EN 1822
They are used as separate filters or end filters in filtration classes M5, M6, F7, F8, F9, H10, H11, H12, H13. They are mainly designed as filters for capturing microparticles.
Product description
High-capacity strength filters are designed for high air flows up to 3400 m3/h and for high absorption capacity and long service life.
The glass microfiber filter medium of the required filtration class is composed of a mini pleat system with melt adhesive separation.
The compactness of the filter is ensured by the placement of the components in V-shaped pockets and sealing in a solid all-plastic frame.
The filters are easily disposable in incinerators or controlled landfills.
On special order, we also supply compact filters in a metal Zn frame with temperature resistance up to 120 °C or compact filters for steam turbines and compact filters with activated carbon.
Technical data
